- travel about 20-50km
- The electric wheel is only applicable to conventional bicycles, not for tricycles, tractors, etc
- Waterproof Ebike Conversion Kit
- 4.0 tires, tubeless tires, and solid tires are not supported
- Can not be installed under general 16 inches,16-26 inch bicycles are suitable for installation
- Note: the bicycle tire is seriously aged and needs to be replaced before installation, otherwise it is easy to wear the tire
- As shown in Figure 2, confirm that your car can be installed and then purchased! thank you!
This conversion package is very easy to install and remove.

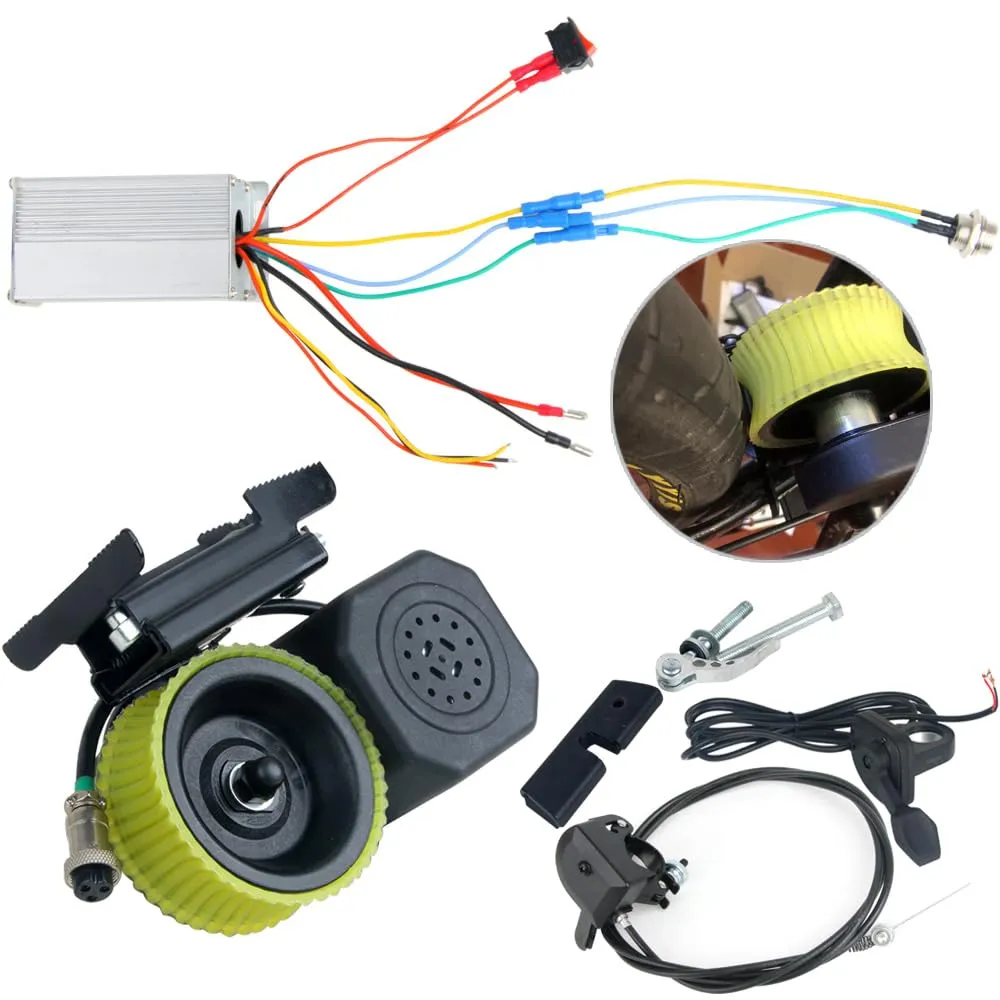

The Ebike conversion kit includes all components needed for installation; brushless motor, controller, throttle, clutch, fender, set screws and cable ties. Please note that this electric bike kit does not include batteries and tires!
Applicable models: road bike commuter bike mountain bike,It can be worn electric and can also be assisted,Bicycles under 16 inches cannot be installed, and 16-26 inch bicycles are suitable for installation,4.0 tires, tubeless tires, and solid tires are not supported.
If the temperature of the motor exceeds 90 degrees Celsius during riding, it will trigger overheating protection, and the power will be cut off, and it will return to normal when the temperature cools down.
Note:If your bike tires are deeply treaded, they will slip easily in the rain.
The modified effect has a lot to do with the bicycle tires, and it also has a lot to do with the hands-on ability. Before buying, check whether your bicycle can be installed according to the main picture 3!
Note:If your bicycle tires are seriously aging, it is recommended to replace the tires before installing them! Otherwise it will wear down the bicycle tires
Important reminder:
*The effect of the bicycle booster has a lot to do with the bicycle tires. If your bicycle tires have deep lines, it is recommended to apply a little Glass cement to the surface of the tire to increase the contact area, thereby increasing the friction and achieving better results.
*Bicycles under 16 inches cannot be installed, and 16-26 inch bicycles are suitable for installation,4.0 tires, tubeless tires, and solid tires are not supported.
*Applicable battery type and parameters: 36V/48V, 8-25Ah, battery life about 20-60km;
*Please watch the video before installation, the video is in the package!
Product Description
Item Specifics:
Speed: 20-35km/h
Voltage: 36V-48V
Applicable models: road bike commuter bike mountain bike
Brushless motor size: 16.1x12x8.1cm
Controller size:6.3x4.8x3in
Power: Rated 250W
weight: 5.5 pounds
Friction wheel material: Material Alloy Polyurethane
Packing List:
Brushless Motor
Electric Controller
Throttle switch
Baffle
Screw
Clutch switch
Give a friction wheel
Battery and charger are not included, please prepare them before using.
Battery and charger are not included, please prepare them before using.
- Product Dimensions : 4.72 x 4.72 x 3.19 inches
- Date First Available : June 5, 2023
- Manufacturer : BAIZIFU
- Country of Origin : China
