- Glass & Coatings - Made with BK7 borosilicate HD optical glass(OG), fully multi-coatings, and up to 86% light transmission, provides great color fidelity, brightness, clarity, and detail resolution in most environments

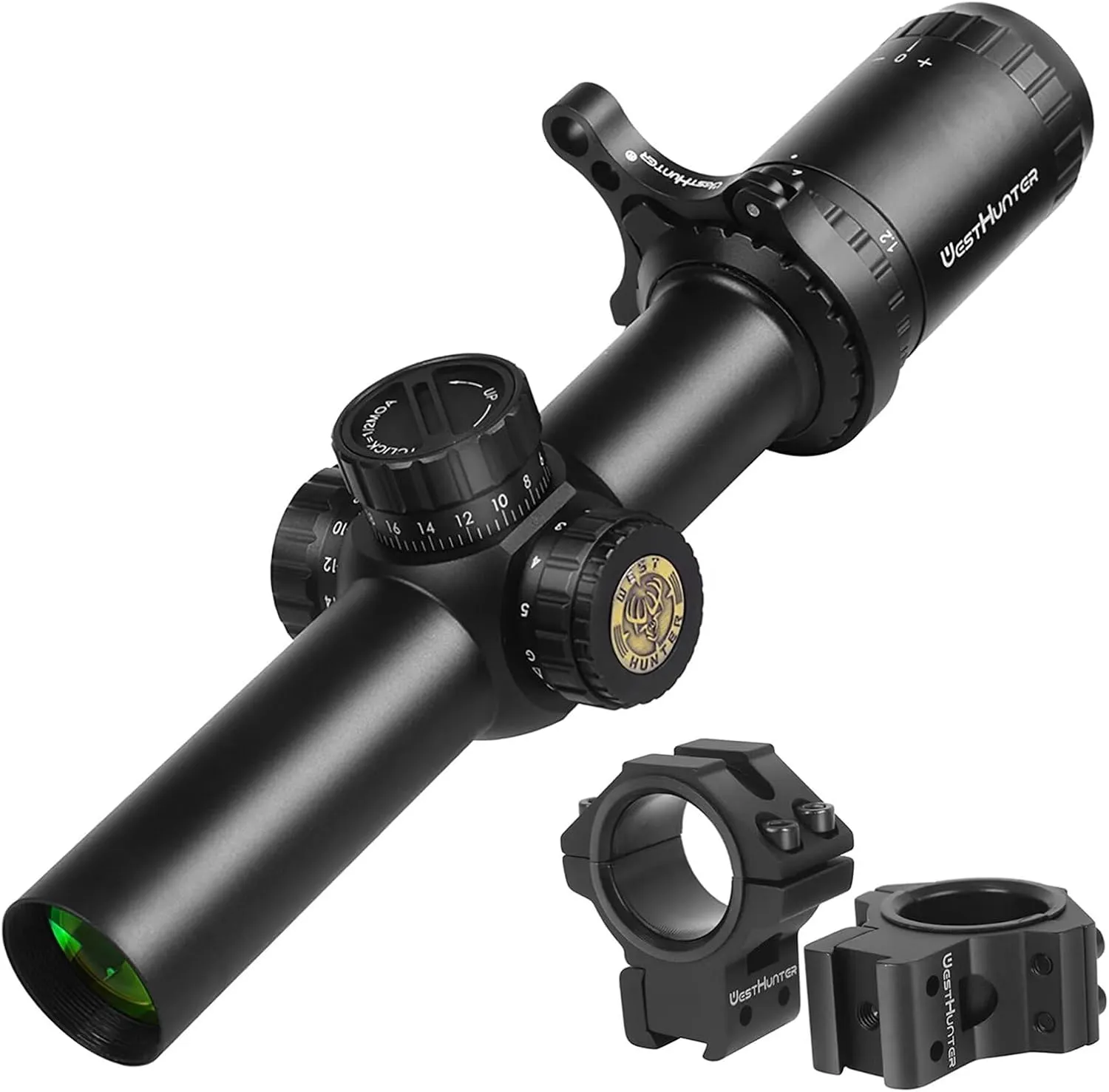

- Construction & Technology - Constructed with 6061 T6 aircraft-grade aluminum alloy for a stable, durable, and lightweight structure. Advanced anodized finish enhances appearance and wear resistance. Nitrogen filling prevents fogging, and sophisticated design and assembly processes ensure excellent shockproof and waterproof performance
- Main Parameters - 50 MOA of elevation/windage travel, 101 mm long eye relief, red & green illuminated etched glass reticle, wide field of view 91 to 18.2 feet (@100yds), and 1/2 MOA precision turret adjustment
- Zero-Reset Turret - Featuring capped quick-reset turrets with stretch lockdown, finger adjustable with crisp audible clicks that will be able to quickly reset to zero after sighting in
- Our HD series offers exceptional cost-effectiveness, it will be your steady shooting companion
Specifications:
Brand: WestHunter
Model: HD 1.2-6x24 IR FFP
Magnification: 1.2x-6x
Objective Lens Diameter: 24 mm / 0.94 in
Objective Diameter: 30.2 mm / 1.19 in
Tube Diameter: 30 mm / 1.18 in
Diopter Range /-: 2
Eye Relief: 101.2 mm
Focal Plane: First Focal Plane(FFP)
Reticle Manufacturing Technique: Glass Etching
Illumination: Red & Green(CR2032 Battery is not included)
Standard Click Value for E/W: 1/2 MOA
Parallax(Factory Settings) : 100 yds
Length: 248 mm / 9.8 in
Net Weight of Optics: 401 g / 14.14 oz
Surface Treatment: Anodizing
Fast Focus Eyepiece: Yes
Sealing Gas Used: Nitrogen
Range of Function temperature (Unit can still be operated): -25°C/ 55°C
Storage temperature: -40°C to 85°C
Range of Dioptric compensation /- dpt: 2
Permissible backlash Dioptric Compensation: <0.25dpt
Eff. Exit Pupil Diameter: 4-13.33
Coating: FMC
